Ethernet Switch 8 1000M RJ45 Port + 2 1000M SFP port 10 ports Ethernet switch FOWAY1510TFS manufacturer from China HiOSO Technology Co., Ltd.

Ethernet Switch 8 1000M RJ45 Port + 2 1000M SFP port 10 ports Ethernet switch

Qty (Piece/Pieces)	Unit Price (1.0~100.0 USD)
1	1
1 +	100
Trade Term:	EXW
Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FOWAY1510TFS

Production Capacity: 30000pcs/month

Delivery Date: in one week

Name: Ethernet switch

Colour: Black

Downlink Port: 8 10/100/1000M RJ45 ports

Origin Place: China

Means of Transport: Ocean,Land,Air

Packing: standard packaging

Brand Name: HIOSO

Brand: Hioso

Material: Metal

Uplink Port: 2 1000M SFP port

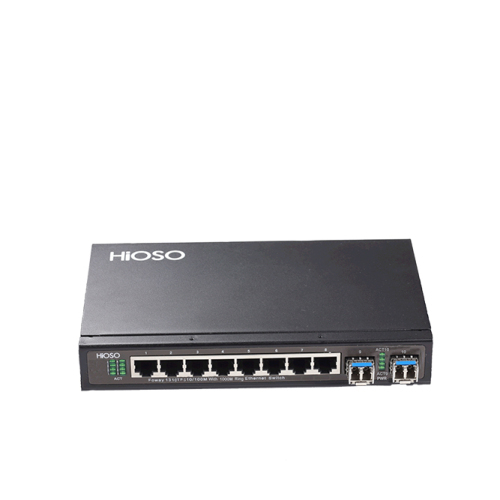

FOWAY1510TFS series is ten ports 100M/1000M Ethernet Switch , contains unmanaged and Web managed type, with 8 10/100/1000M TP and 2 Gigabit SFP ports.

Overview

HiOSO FOWAY1510TFS series is ten ports 100M/1000M Ethernet Switch , contains unmanaged and Web managed type. It can provide eight 1000M (10/100/1000M adaptive) RJ45 ports and 2 Gigabit SFP port uplink, support SFP hot plug; Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.

Character:

Support maximum 8 1000M (10/100/1000M adaptive) RJ45 ports and 2 1000M SFP port uplink

It can build 1000M fiber internetSupport SFP hot plug

Support 100/1000M port full rate, full-duplex non-blocking forwarding

Support 8K MAC learning, 1Mbit storage and forward cache space,4.6G back plane bandwidth

Support to choose one side with fixed metal casing, external power design, better for heat dissipating and installation

Technical Specification

Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength	SFP Module: 850nm/1310nm/1490nm/1550nm
Distance	1000M SFP multi-mode:220m (fiber 62.5/125μm)/ 550m(fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	8 1000M RJ45 ports : 10/100/1000Mbps 2 1000M SFP: 1 Gbps, 1000M SFP
MAC	16K
Buffer memory space	2Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	DC12V/1A
Power consumption	10W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	28mm (H)×193mm(W)×119mm (D)

Order information

No	Product code	NMS	Ports	Power
1	FOWAY1510TFS	NO	8 1000M RJ45 + 2 1000M SFP uplink	DC12V
2	FOWAY1510TFSM	Yes	8 1000M RJ45 + 2 1000M SFP uplink	DC12V
